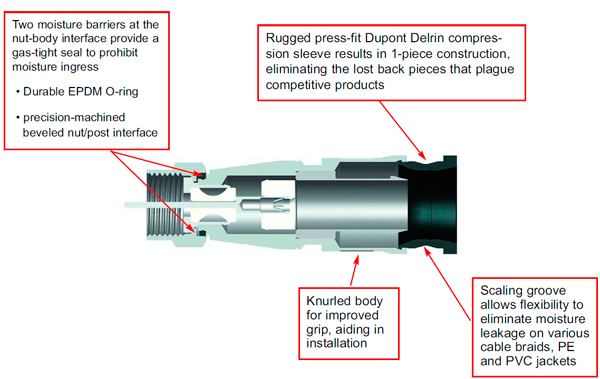

Разъем компрессионный CMP11

Specifications
Bandwidth: 0 MHz to 3 GHz
Impedance: 75 Ohms (nominal)
Return Loss: Minimum -30 dB to 3 GHz
Insertion Loss: Less than .10 dB to 3 GHz
Operating Voltage: 90 V (at 60 Hz continous AC)
Operating Temperature: -40° F to + 140° F (-40° C to 60° C)
Cable Retention: 45 lbs (20.41 kg) minimum
Meets or Exceeds all SCTE Specifications
