HSW0201

2 входа,  1 выход, автоматическое переключение, поддержка HDMI1.3+HDCP1.0/1.1 и до 1080р, 2.5Gbps

FEATURES

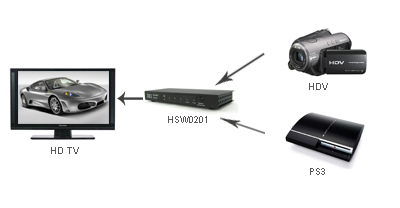

* Switch easily between any two HDMI sources automatically.
* Maintains high resolution video - beautiful, sharp HDTV resolutions
up to 1080p, 2k, 1440p graphics and computer resolutions
up to 1920 x 1200 are easily achieved
* No external power needed.
* Up to 24 bit colour depth.
* Up to DTS Master Audio and Dolby Digital TrueHD support
* HDMI pass-through
* HDCP pass-through
* Compatible with HDMI1.3 devices.

SPECIFICATIONS
Operating temperature range…………………………0 to +70℃
Operating humidity range………………………………5 to 90 % RH (no condensation)
Video Amplifier Bandwidth……………………………2.5Gbps/250MHz
Input Video Signal………………………………………0.5-1.0 volts p-p
Input DDC Signal…………………………………………5 volts p-p (TTL)
Maximum Single Link Range……………………………1920 x 1200, 1080P
Video format supported:
VGA : ………………………………………………………640x480,800x600,1024x768,1920x1200
DTV/HDTV: …………………………………………………480i/576i/480p/576p/720p/1080i/1080P
Output Video………………………………………………HDMI1.3+HDCP1.0/1.1
Power Consumption…………………………………………5Watts (max.)
Power Supply………………………………………………5VDC (optional)
Dimensions…………………………………………………85mmW x 15mmH x 43mmD
Net Weight…………………………………………………0.05KGs
